Geberit - DUOFIX - Frame for Wall-Hung WC, 790mm, Low-Height Concealed Cistern
- Has been replaced by art. no. 111.207.00.3, Replaces art. no. 111.207.00.1
- Not suitable for furniture with front plinths
- Including Pre Wall brackets and WC bend; Requires pneumatic button

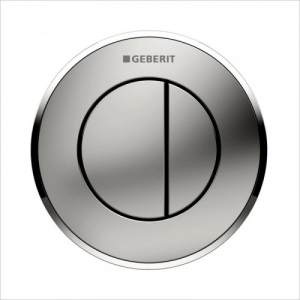

- To order additionally: Type 01 / Type 10 Remote flush actuation, pneumatic
Scope of delivery
-
2 threaded rods M12
-
Fastening material
-
Connection bend 90° made of PE-HD, ø 90 mm
-
Adaptor socket made of PE-HD, ø 90 / 110 mm
-
Cup for flush volume reduction 4.0 / 2.6 l
|
Flow pressure: |
0.1-10 BAR |
|
Maximum operating temperature, water |
25 °C |
|
Flush volume, factory setting |
5.8 / 3L |
Application purpose
-
For drywall construction
-
For installation in bathroom furniture
-
For installation in part-height prewall installations
-
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
-
For wall-hung WCs with projection up to 620mm (62cm)
-
Not suitable for Geberit AquaClean Alba
-
Not Suitable for Geberit AquaClean Sela
-
For floor constructions 0-200mm (20cm)
Characteristics
-
Statically self-supporting framem protected against corrosion with powder coating
-
Frame prepared for support brckets for WC ceramic appliances with small contact surface
-
Galvanized feet
-
Feet adjustable 0-200mm (20cm)
-
With large foot plates for raised power supply in floors
-
Connection bend can be mounted without tools at different depths, adjustable range 45mm
-
Fastening for connection bend, sound-absorbing
-
Flush actuation pneumatic
-
Flush pipe connection with compression joint
-
Water supply connection on the bottom left
-
Water supply connection 1/2"
Additional information
-
For installation in bathroom furniture with full length front panel (not for use with front plinths)
-
For furniture with an internal dimension of 465 mm wide, the item can not be used with side plinths
-
This frame has been especially designed for use with furniture and furniture clips only
-
Includes extension brackets taking the depth up to 335 mm
-
This frame must not be installed behind the wall
-
The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
