Dimensions: 475 x 200 x 1120 mm
(length, width, height)

Roca - IN-WALL - Duplo ONE - Free Standing WC Frame with Concealed Cistern for Solid Floor (AG)


Dimensions: 475 x 107 x 1190 mm
(length, width, height)

Roca - IN-WALL - Duplo ONE - WC Frame with Concealed Cistern for In-Wash Smart Toilets (AG)

Duplo ONE full height installation system with cistern and frame

Roca - IN-WALL - Duplo ONE - Full Height WC Frame with Concealed Cistern (AG)

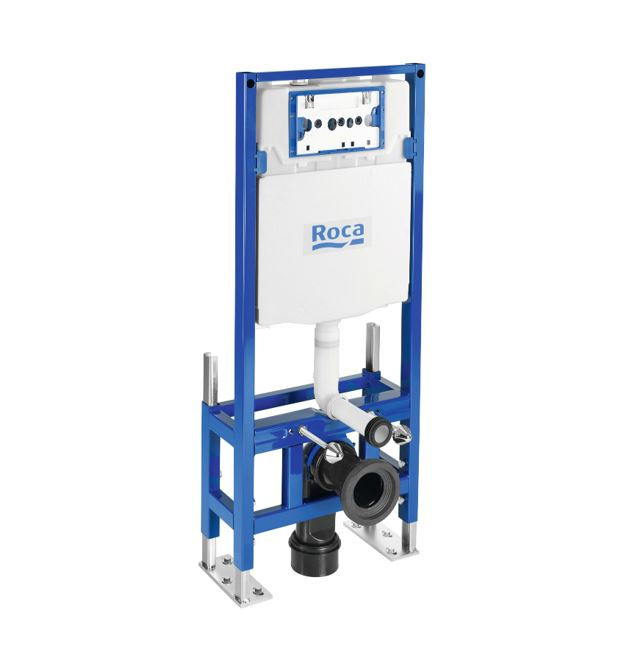

Roca - IN-WALL - Duplo ONE - Free Standing WC Frame with Concealed Cistern for Solid Floor (AG)

TECHNICAL SPECIFICATIONS

Dynamic pressure range: 0,1 - 10 Bar

Elbow connection: DN100 (110 mm), DN90 (90 mm)

Flushing type preset: Dual flush 3/6, 4/2, 4.5/3 Litres

Minimum fixation depth (mm): 220

Operating panel position: Frontal

Suitable for: Wall-hung WC

Tank depth (mm): 80

Water inlet position: Top

PRODUCT SHEET

TECHNICAL DRAWING

INSTALLATION MANUAL

VAT EXEMPTION

Regular Price £385.81 Special Price £308.65 £257.21
SKU
8900770A0

COMPATIBLE PRODUCTS

  • PL3 PRO (DUPLO ONE) Single / Dual
  • PL2 (DUPLO ONE) Single / Dual
  • PL1 (DUPLO ONE) Single / Dual
  • PL10 & PL10 PRO (DUPLO ONE) Single / Dual
  • PL7 (DUPLO ONE) Single / Dual
  • EP3, EP2, EP1 (DUPLO ONE) Single / Dual
  • PL3-E PRO (DUPLO ONE)
