Novellini Kuadra Plus R90 Steam Cubicle Corner Entry Quadrant

FEATURES:

Thermostatic mixer, Hand Shower, Shower Head, Aroma dispenser, Folding seat in HPL, Shelves, Adjustable Waterjets, Programmable steam, Touch screen remote control, Radio FM RDS Stereo, MP3 Connection, Cromolight lamp.

Dimensions 90 x 90 x 203mm High

Regular Price £9,573.95 Special Price £7,358.96 £6,132.47
SKU
CKUAR90T5-1KK

Novellini Kudra Plus Steam Cubicle Corner Entry

Novellini Kuadra Steam Cubicle Components



HYDRAULIC CHARACTERISTIC
· Working pressure 2÷5 bar
· Hot water connections 1/2”
· Cold water connections 1/2”
· Syphon connecti on Ø 40 mm


ELECTRICAL CHARACTERISTIC
· Supply voltage 220-230 V
· Frequency 50/60 Hz
· Maximum absorbed power: 3300 W

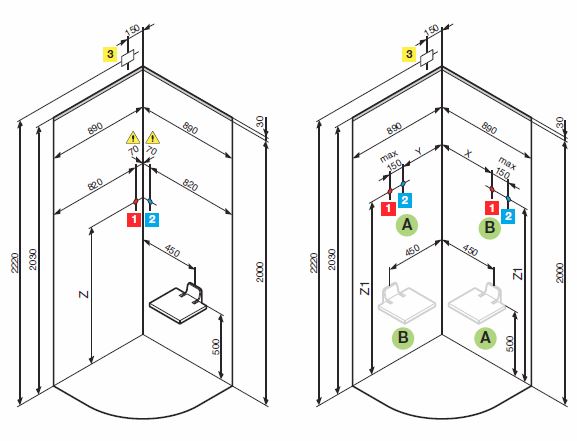

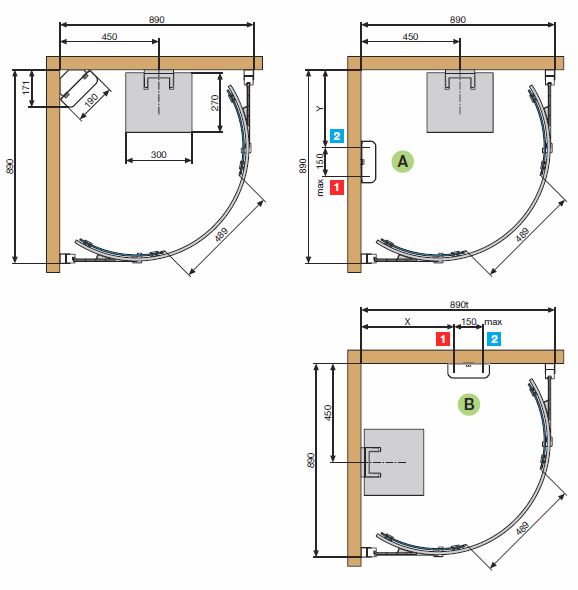

 Novellini Kuadra R90 Steam Cubicle Dimensions

Novellini Kuadra R90 Steam Cubicle Dimensions2

Novellini Kuadra Steam Cubicle Details



More Information
Manufacturer Novellini
Is Featured No
