Novellini Kuadra Plus A90 Steam Cubicle Corner Entry

Novellini Kuadra Plus A90 Steam Cubicle Corner Entry

AKW Standalone Cubicle 1200x800mm with Waste Options 23035

AKW Standalone Cubicle 1200 x 800mm with Waste Options

Left Hand Unit Dimensions

Novellini Kuadra Plus A120x80 Steam Cubicle Offset Corner Entry

Novellini Kuadra Plus A90 Steam Cubicle Corner Entry

Free Thermostatic Shower with all Novellini Wet Room Decks or Shower Trays and Shower Screen Combined Purchases, Call 01626 324234 for details.

FEATURES:

Thermostatic mixer, Hand Shower, Shower Head, Aroma dispenser, Folding seat in HPL, Shelves, Adjustable Waterjets, Programmable steam, Touch screen remote control, Radio FM RDS Stereo, MP3 Connection, Cromolight lamp.

Dimensions 90 x 90 x 203mm High

Regular Price £8,566.15 Special Price £6,584.30 £5,486.92
SKU
CKUAA90T5-1KK

Novellini Kudra Plus Steam Cubicle Corner Entry

Novellini Kuadra Steam Cubicle Components



HYDRAULIC CHARACTERISTIC
· Working pressure 2÷5 bar
· Hot water connections 1/2”
· Cold water connections 1/2”
· Syphon connecti on Ø 40 mm


ELECTRICAL CHARACTERISTIC
· Supply voltage 220-230 V
· Frequency 50/60 Hz
· Maximum absorbed power: 3300 W

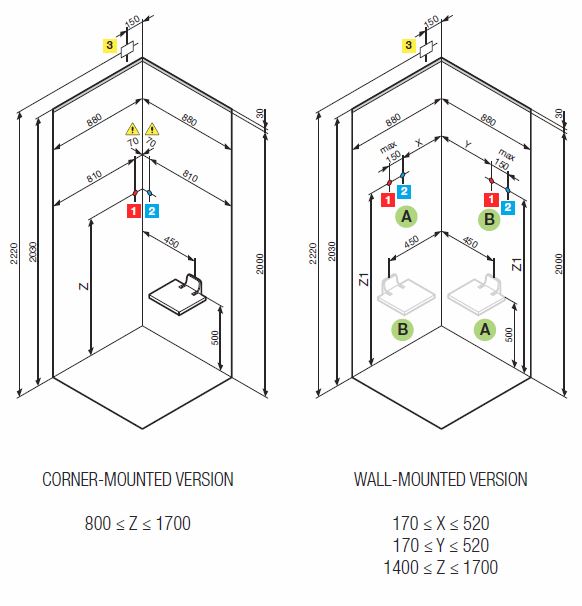

Novellini Kuadra A90 Steam Cubicle Dimensions

Novellini Kuadra A90 Steam Cubicle Dimensions2

Novellini Kuadra Steam Cubicle Details

More Information
Manufacturer Novellini
Is Featured No
